Features
  • Economical multi-axis nanopositioner
  • Two or three axis motion
  • 100 μm or 200 μm XY ranges of motion
  • 20 μm or 50 μm Z range of motion
  • Large aperture
  • Closed loop control


Typical Applications
  • Multi-axis alignment
  • Fluorescence imaging
  • Closed-loop AFM scanner
  • Super resolution microscopy



Product Description

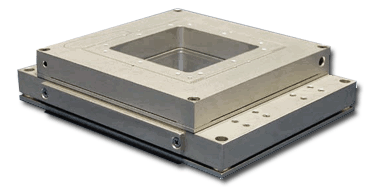

The Nano-T Series are economical, multi-axis nanopositioning systems which are available in a variety of configurations. The Nano-T Series have up to 200 microns range of motion in X and Y, and up to 50 microns in Z. The large center aperture accomodates lenses and probes without compromising performance. Internal position sensors utilizing proprietary PicoQ® technology provide absolute, repeatable position measurement and picometer accuracy under closed loop control. The Nano-T Series is well suited to applications in which precise positioning is required but the overall stage height is not critical. If extremely low profile systems are required, both the Nano-Bio2 and the Nano-LP Series should be considered.

Compatible Software Packages:



Technical Specifications

Range of motion (X, Y) 100 μm/200 μm
Range of motion (Z)
20 μm/50 μm
Resolution XY (100/200 μm) 0.2/0.4 nm
Resolution Z (20/50 μm) 0.04/0.1 nm
Resonant Frequencies
X axis (100/200 μm) 450/400 Hz ±20%
Y axis (100/200 μm) 250/200 Hz ±20%
Z axis (20/50 μm) 450/350 Hz ±20%
Stiffness 1.0 N/μm
θ roll, θ pitch (typical) ≤1 μrad
θ yaw (typical) ≤3 μrad
Recommended max. load (horizontal)* 0.5 kg
Recommended max. load (vertical)* 0.2 kg
Body Material Al or Invar
Controller Nano-Drive®
* Larger load requirements should be discussed with our engineering staff.


Additional Information

Nano-T Series (2 Axis) Drawing


Nano-T Series (3 Axis) Drawing

Nano-T Series Catalog Pages
