| Motorized Positioning Systems – Filter Wheels |
|
| Filter Wheel FRM 65 |
FRM 65 |

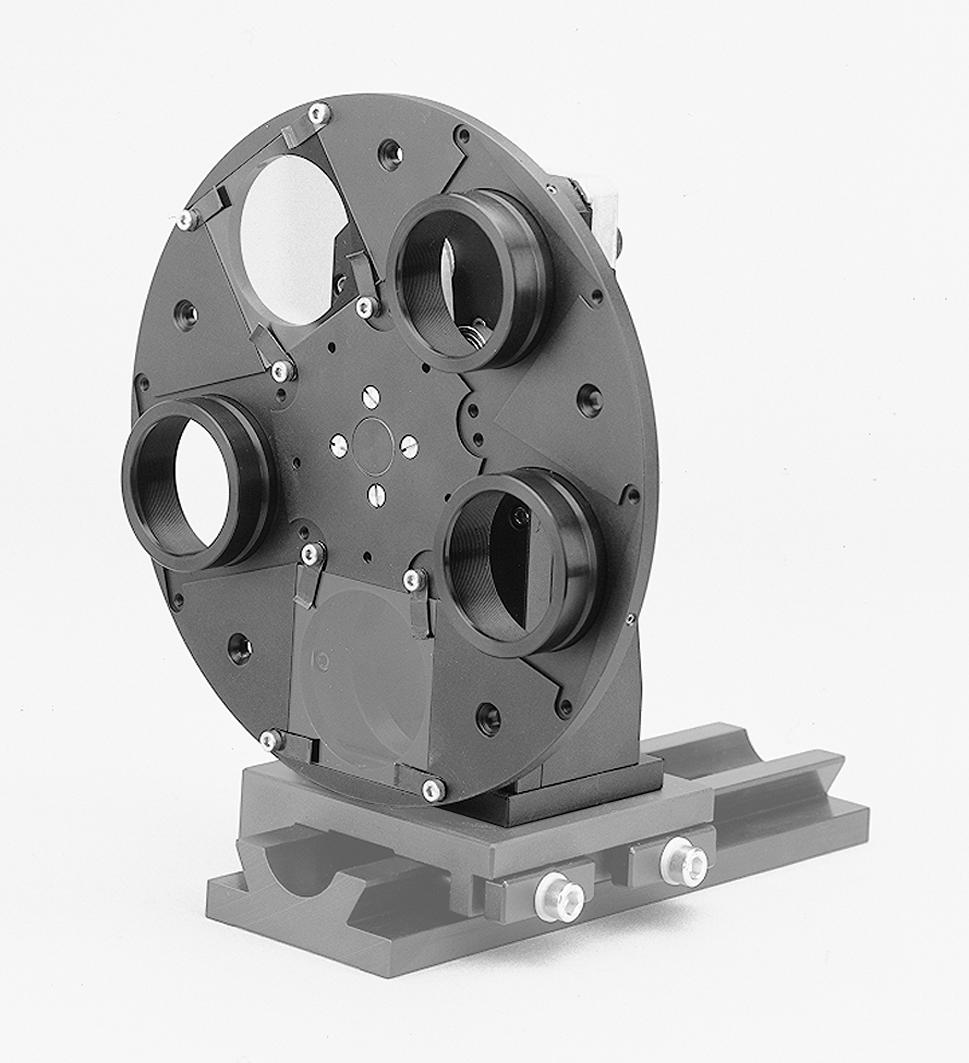

The motorized filter wheel 65 is suited for automatic changing of five or twelve mounted or unmounted filters. Either 50x50 mm plates or optics in ø 45 mm mounts can be used.
The base version has a base plate for fastening. Assembled on the slide 65-4, the filter wheel can be used in the system 65.
In terms of drive, a 2-phase step motor as well as a DC servo motor version are available.
The base parts are made of high-strength aluminium and have a top quality black anodised protective coating.
Mounts are not part of the delivery. |
 |
• compatible with SYS 65
• high strength aluminium alloy
• mountable on slides
• with step motor or geared DC servo motor
• contactless, high-precision limit switches (Hall-effect)
| |
|
| |
Part No. |
Type designation |
Product type |
|
| |
46.605.456C |
FRM 65-5-D45-HSM |
filter wheel, 5-fold, for ø 45 mm filter, step motor |
|
|
| |
46.605.516C |
FRM 65-5-D51-HSM |
filter wheel, 5-fold, for 2“ ø filter, step motor |
|
|
| |
46.612.456E |
FRM 65-12-D45-HSM |
filter wheel, for 12 mounts ø 45 mm, step motor |
|
|
| |
46.612.516E |
FRM 65-12-D51-HSM |
filter wheel, for 12 mounts ø 2“, step motor |
|
|
| |
46.605.511C |
FRM 65-5-D51-HDS |
filter wheel, 5-fold, for ø 2“ filter, DC servo motor |
|
|
| |
46.605.451C |
FRM 65-5-D45-HDS |
filter wheel, 5-fold, for 45 mm ø filter, with unlimited angle of rotation, DC servo motor |
|
|
| |
46.612.451F |
FRM 65-12-D45-HDS |
filter wheel, for 12 mounts ø 45 mm, DC servo motor |
|
|
| |
46.612.511F |
FRM 65-12-D51-HDS |
filter wheel, for 12 mounts ø 2“, DC servo motor |
|
|
| |
69.914.4020 |
G45-20-D40 |
lens mount fo unmounted optics ø 1.5" |
|
|
| |
16.024.0060 |
RT 65-4-90-M6 |
slide 65-4, 90 mm |
|
| |
|
| |
