| Motorized Positioning Systems – Filter Wheels |
|
| Filter Wheel FRM 40 |
FRM 40 |

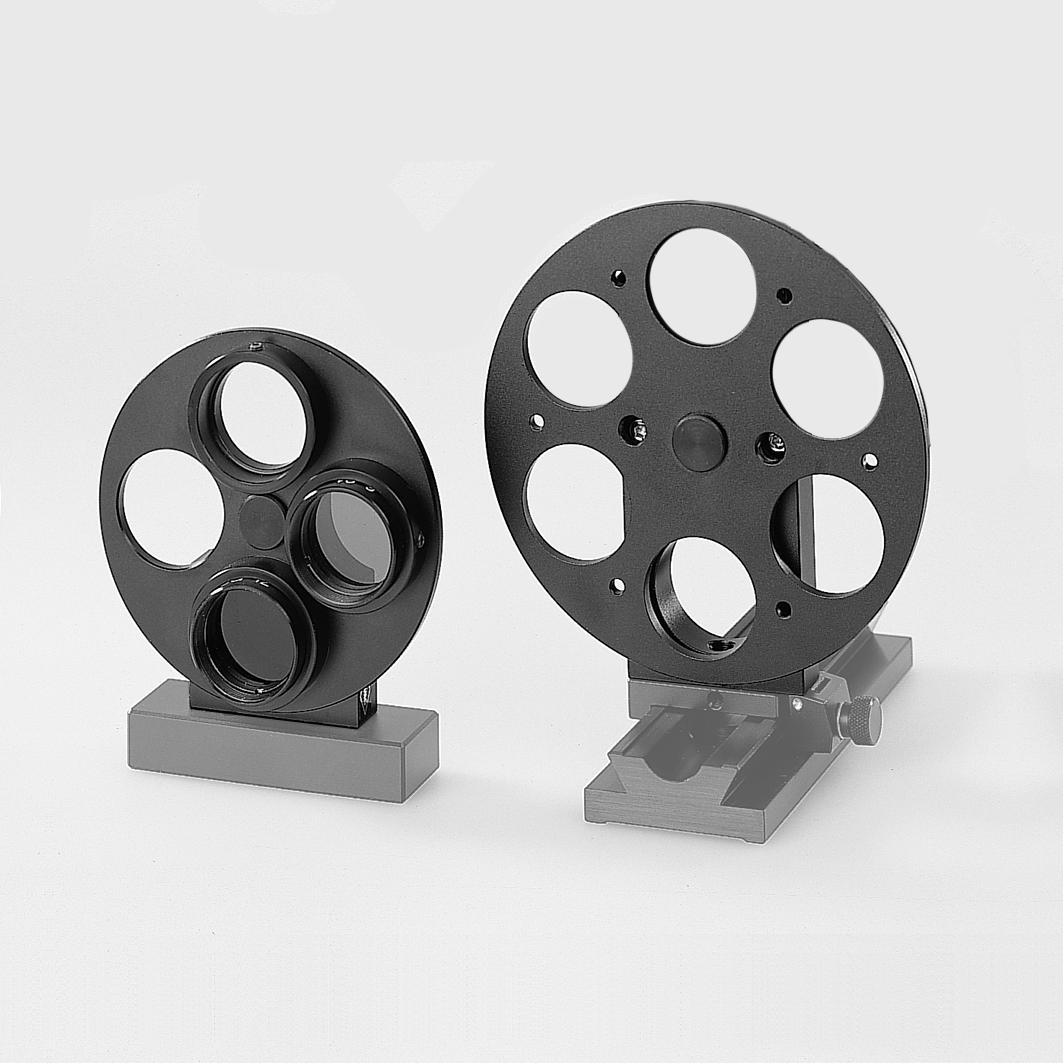

The motorized Filter Wheel 40 permits automatical changing of 4 or 6 filters. Unmounted filters ø 25 mm/1“, or optics in ø 25 mm mounts can be used.
The Filter Wheel 40 can be mounted on a SYS 40 slide. Using the system adapter 16.900.0003, it can be fitted to a SYS 65 slide.
Mounting rings for filters are not included in the delivery range.
All aluminium parts have a top quality black anodised protective coating. |
 |
• compatible with SYS 40
• high strength aluminium alloy
• mountable on slide
• with step motor or geared DC servo motor
• contactless, high-precision limit switches (Hall-effect) | |
|
| |
Part No. |
Type designation |
Product type |
|
| |
46.404.256C |
FRM 40-4-D25-HSM |
filter wheel, 4-fold, with step motor |
|
|
| |
46.406.256C |
FRM 40-6-D25-HSM |
filter wheel, 6-fold, with step motor |
|
|
| |
46.404.251C |
FRM 40-4-D25-HDS |
filter wheel, 4-fold, with DC servo motor |
|
|
| |
46.406.251C |
FRM 40-6-D25-HDS |
filter wheel, 6-fold, with DC servo motor |
|
|
| |
14.630.9002 |
|
mounting ring for unmounted filters ø 1“ |
|
|
| |
14.021.0020 |
RT 40-20-R |
slide RT 40, 20 mm |
|
|
| |
16.021.0020 |
RT 65-20-R |
slide RT 65 20 mm |
|
|
| |
16.900.0003 |
ADP-S65-540-20 |
adapter plate 65 x 40 x 20 |
|
| |
|
| |
