VENTEON/PULSE ONE-基本型

Femtosecond Ti:Sapphire Oscillators

Octave-Spanning (OS) Edition & Ultrabroad (UB) Edition

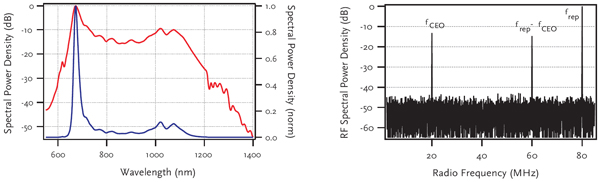

Our VENTEON | PULSE : ONE Octave-Spanning (OS) Edition is designed for providing a spectral bandwidth which allows for direct carrier envelope phase (CEP) stabilization without additional spectral broadening. A signal-to-noise ratio (SNR) greater than 30 dB in a 100 kHz resolution bandwidth (RBW) can be generated using a standard f-to-2f interferometer (optional). Our OS Edition features an extended breadboard allowing for a pump laser and interferometer installation within the laser enclosure.
This system is also available as CEP stabilized CP Edition including an f-to-2f interferometer, locking-, measurement- and controlling electronics.

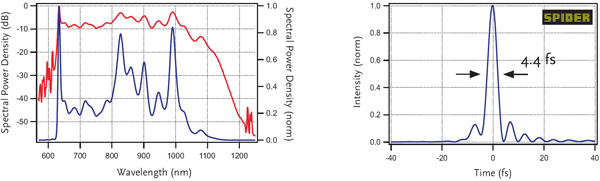

Our Ultrabroad (UB) Edition is designed for delivering the broadest spectral bandwidth supporting pulse durations as short as 6 fs with more than 200 mW average output power. This laser is also available with our new Integrated Pump (IP) option.

Specifications

- Repetition rate: 80 - 200 MHz
- Average output power > 150 mW
- Pulse energy > 1.5 nJ @ 80 MHz
- Spectral width > 600 nm @ -30 dBc
- Pulse duration < 6 fs
- f-to-2f SNR > 30 dB @ 100 kHz RBW

Technical Data:
- Extended breadboard design
- Dimensions: 750 x 550 x 140 (mm-values)
- Weight: ~75 kg (~166 lbs)

Available Options:

PULSE : ONE UB - Ultrabroad Edition

Specifications

- Repetition rate: 80 - 200 MHz
- Average output power > 200 mW
- Pulse energy > 2 nJ @ 80 MHz
- Spectral width > 400 nm
- Pulse duration < 6 fs

Technical Data:
- Dimensions: 550 x 350 x 140 (mm-values)
- Weight: ~35 kg (~78 lbs)

Available Options:

Downloads: VENTEON | PULSE : ONE (OS & UB) Flyer
