Femtosecond Ti:Sapphire Oscillators Basic Edition (BE) & Power Edition (PE)

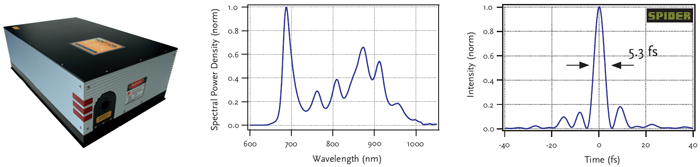

	Our VENTEON | PULSE : ONE Basic Edition (BE) provides a spectral bandwidth enabling pulse durations sub-8 fs at a considerable average output power of 200 mW for a low pump power of 4 W. It offers specifications which are sufficient for a wide range of applications at a very competitive price.
	If more pulse energy is needed, our Power Edition (PE) delivers impressive 500 mW average output power with the same spectral bandwidth supporting sub-8 fs pulse durations. At 80 MHz repetition rate this system delivers more than 6 nJ of pulse energy at 6 Watts of pump power.
	Both lasers are available as complete system including our new Integrated Pump (IP) option, which includes a state-of-the-art DPSS pump laser (4 - 6 Watt) pre-installed within the laser enclosure on an extended breadboard.

Specifications

- Repetition rate: 80 - 200 MHz - Average output power > 200 mW - Spectral width > 200 nm - Pulse duration < 8 fs - Pulse energy > 2 nJ @ 80 MHz

Available Options:

Technical Data

- Prism-less resonator design - Unique NANEO broadband dispersion    compensating mirror pairs only

- Enclosure with cover gas connector - External KLM-starting mechanism - Dimensions: 350 x 550 x 140 mm3 - Weight: ~35 kg (~78 lbs)

Specifications

- Repetition rate: 80 - 200 MHz - Average output power > 500 mW - Spectral width > 200 nm - Pulse duration < 8 fs - Pulse energy > 6 nJ @ 80 MHz

Available Options:
