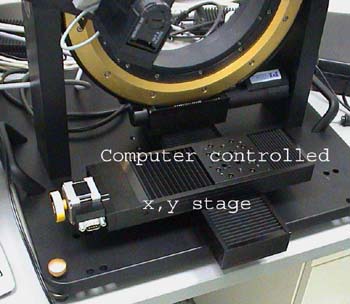

The XY Translation stage with stepping motors fits on the baseplate of the Multiskop

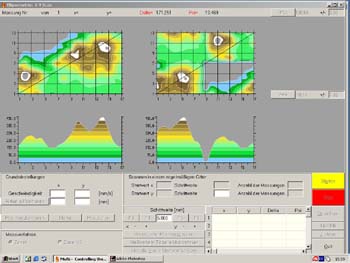

Screenshot of the controlling program Psi and Delta are represented as contourplots (upper part) and as Psi / X   respectively Delta / X representation (lower part)

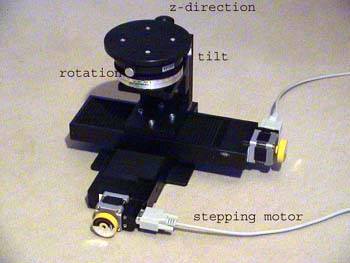

The motordriven sampleholder offers all degrees of freedom for an accurate alignment of the sample. In addition, an automatic XY scan can be performed in connection with ellipsometric measurements.

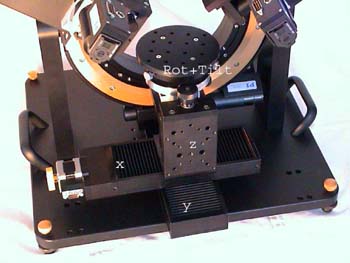

The motorised sampleholder mounted on the base plate of the Multiskop

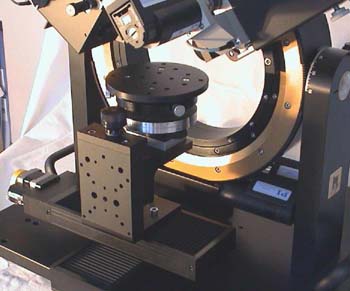

Side view of the motorised sampleholder mounted on the base plate of the Multiskop
