| Motorized Positioning Systems – Elevator Stages |
|

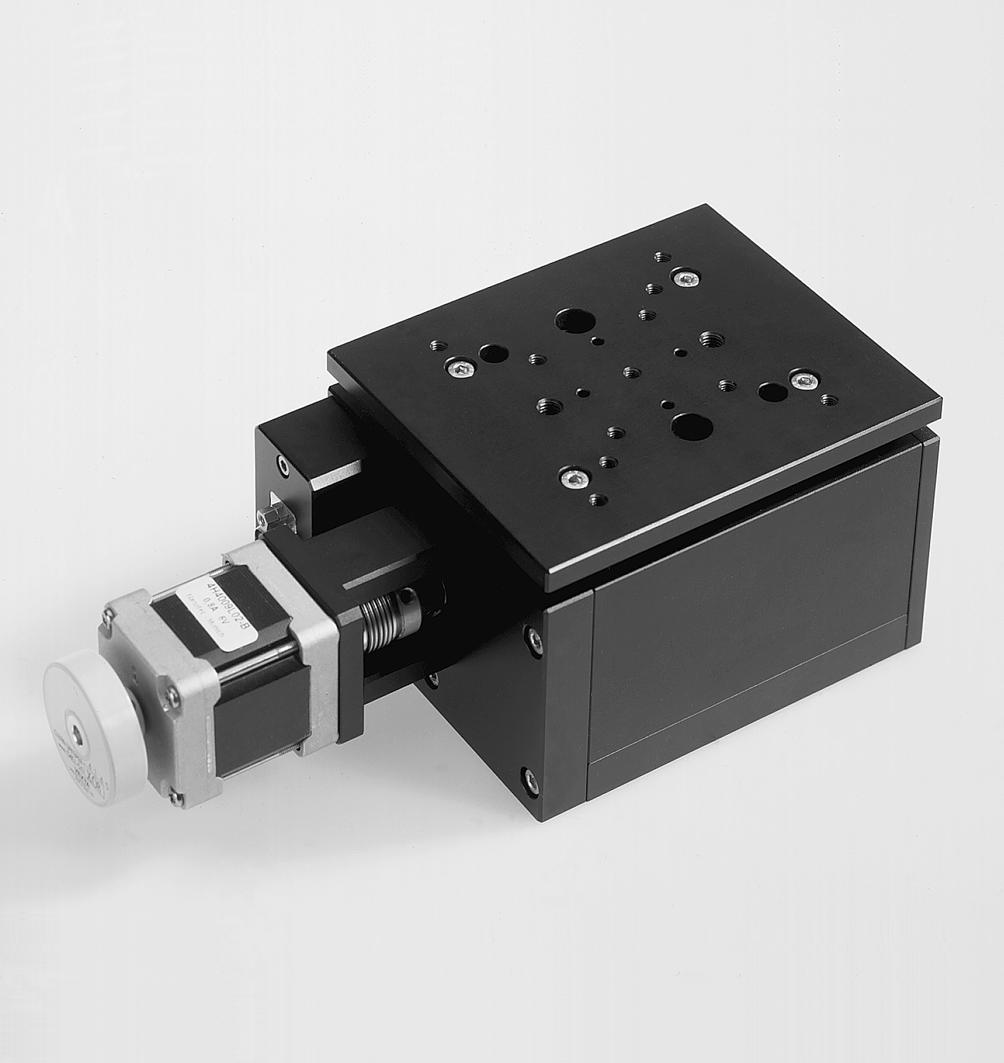

| Elevator Stage HVM 100 |
HVM 100 |
| The proven elevator stages of the HVM 100 series have a low height and a high repeatability. The special guides provide practically slip-stick free movement as well as high load capacity. All aluminium parts have a top-quality black anodized protective coating. |
 |
• low height
• travel up to 30 mm
• designed for industrial applications
• high strength aluminium alloy
• preloaded cross roller guides
• contactless, high-precision limit switches (Hall-effect)
• with step or DC servo motor
Option
• versions for use in vacuum available
| |
|
| |
Part No. |
Type designation |
Product type |
|
| |
42.100.036D |
HVM 100-30-HSM |
elevator stage with 30 mm travel with 2-phase step motor |
|
|
| |
42.100.031C |
HVM 100-30-HDS |
elevator stage with 30 mm travel with DC servo motor |
|
| |
|
|
