| XY Stage KTM 40 |
KTM 40 |

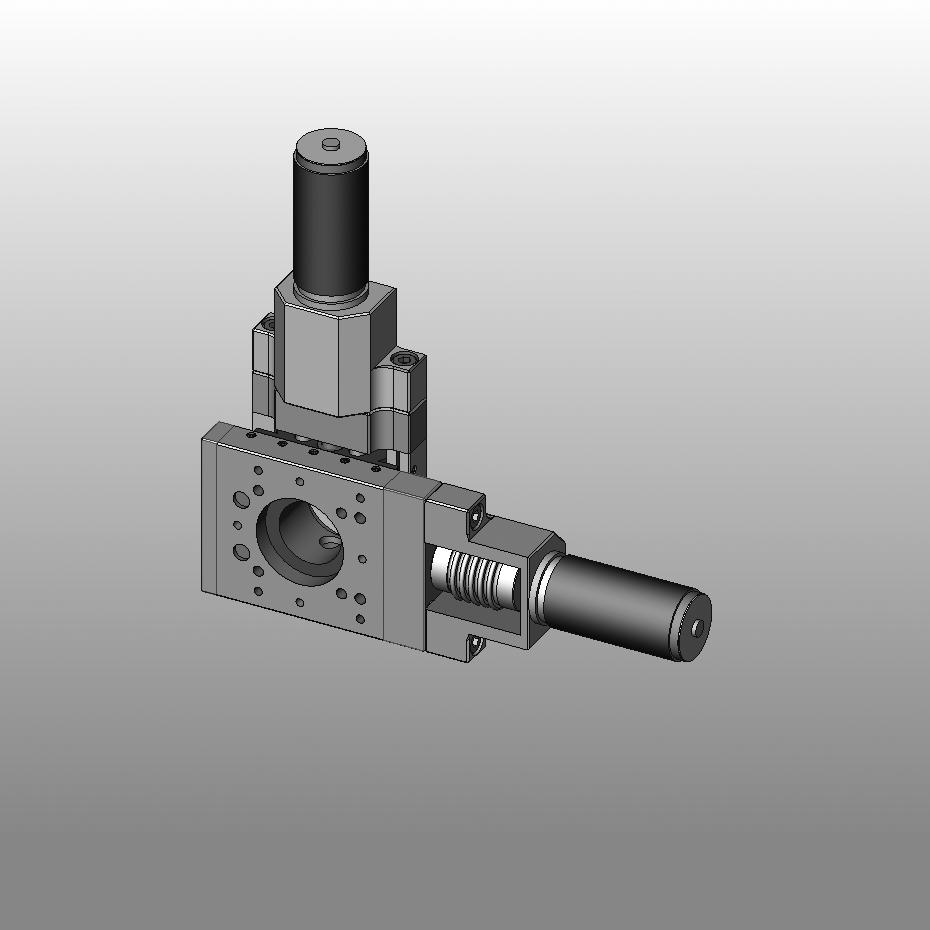

The XY Stage KTM 40 has a high-precision double-dovetail guide, the thread spindle is ground and preloaded. Therefore, precise travels both in X and Y direction are possible. The aperture of ø 15 mm is retained within the entire adjustment range. The KTM 40 is available with step motors or DC servo motors.
On request, the single axis component VTM 40 is available. It is very flat and also compact.
All aluminium parts have a top quality black anodized protective coating. |
 |
• compatible with SYS 40
• deformation-resistant aluminium alloy
• low-backlash dovetail guides
• ground fine-thread spindle (0.4 mm pitch), spring loaded
• 2-phase step motor with gear or DC servo motor with encoder and gear
Options
• electronical limit switches (Hall-Effekt) with reduced travel
• single-axis translation stage VTM 40
| |
|
| |
Part No. |
Type designation |
Product type |
|
| |
48.342.106B |
KTM 40B-D15-XY-SM |
XY stage 40 with end plate, 5.5 mm travel and step motor |
|
|
| |
48.342.101B |
KTM 40B-D15-XY-DS |
XY stage 40 with end plate, 6 mm travel and |
|
|
| |
14.340.2000 |
RT 40-16-R-MVT 40 |
slide 40, 16 mm wide, stepped |
|
|
| |
14.021.0034 |
RT 40-34-R |
slide 40, 34 mm wide |
|
| |
|
|
| |
