PCD-U General Use Pockels Cell Driver

PCD-P Cavity Dumper Driver

PCD-N Q-Switch Driver

PCD-NH Q-Switch Driver

High Repetition Rate Pockels Cell Driver

Pulse repetition rate up to 100 kHz
Fast HV rise time <7 ns for 4 kV pulse
HV pulse amplitude up to 4 kV

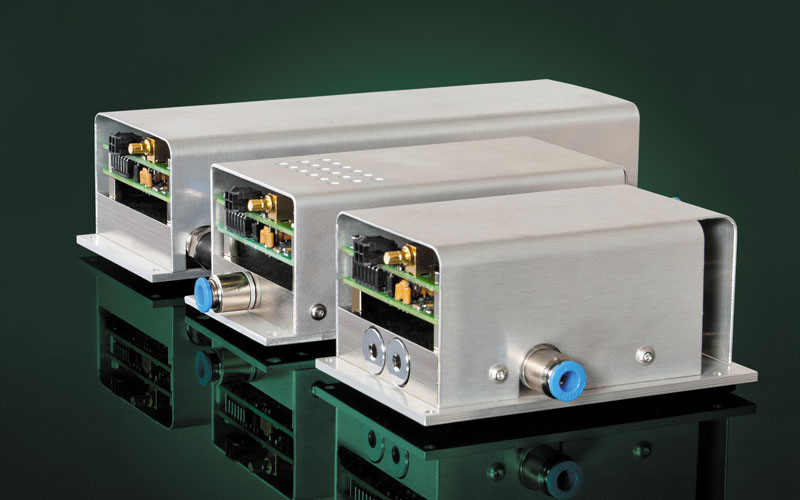

High repetition rate Pockels cell driver PCD-PHR

Download
datasheet

Pulse repetition rate up to 100 kHz
Fast HV rise time <7 ns for 4 kV pulse
HV pulse amplitude up to 4 kV

OEM Cavity Dumper Drivers

Fast HV rise/fall time <4 – 8 ns
HV pulse amplitude up to 3.6 kV
Pulse repetition rate up to 3.5 MHz
Output pulse jitter < 50 ps if trigger pulse rise time < 0.5 ns

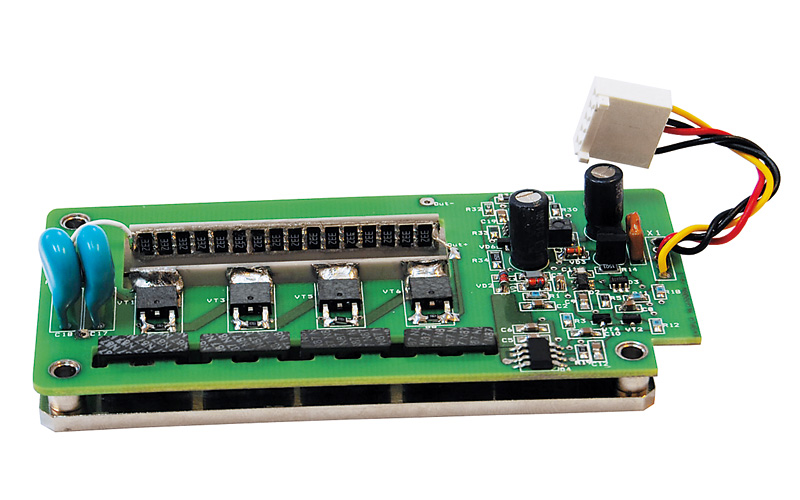

OEM cavity dumper pockels cell drivers PCD-UHR

Download
datasheet

Fast HV rise/fall time <4 – 8 ns
HV pulse amplitude up to 3.6 kV
Pulse repetition rate up to 3.5 MHz
Output pulse jitter < 50 ps if trigger pulse rise time < 0.5 ns

OEM Pockels Cell Driver

HV pulse amplitude up to 5.6 kV
HV repetition rate up to 10 kHz
HV pulse duration down to 15 ns
HV pulse amplitude doubling layout

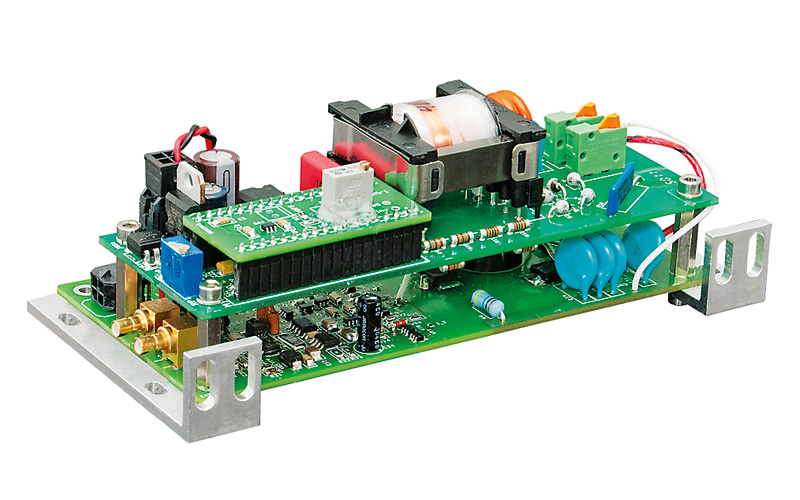

PCD-UHV driver mounted with HV power supply HV05Wm

Download
datasheet

HV pulse amplitude up to 5.6 kV
HV repetition rate up to 10 kHz
HV pulse duration down to 15 ns
HV pulse amplitude doubling layout

Cavity Dumper Driver

For cavity dumping in mode-locked lasers
For cavity Q-switching in nanosecond lasers
Fast HV (less than 7 ns) edge ensures excellent pre- and post-pulse contrast

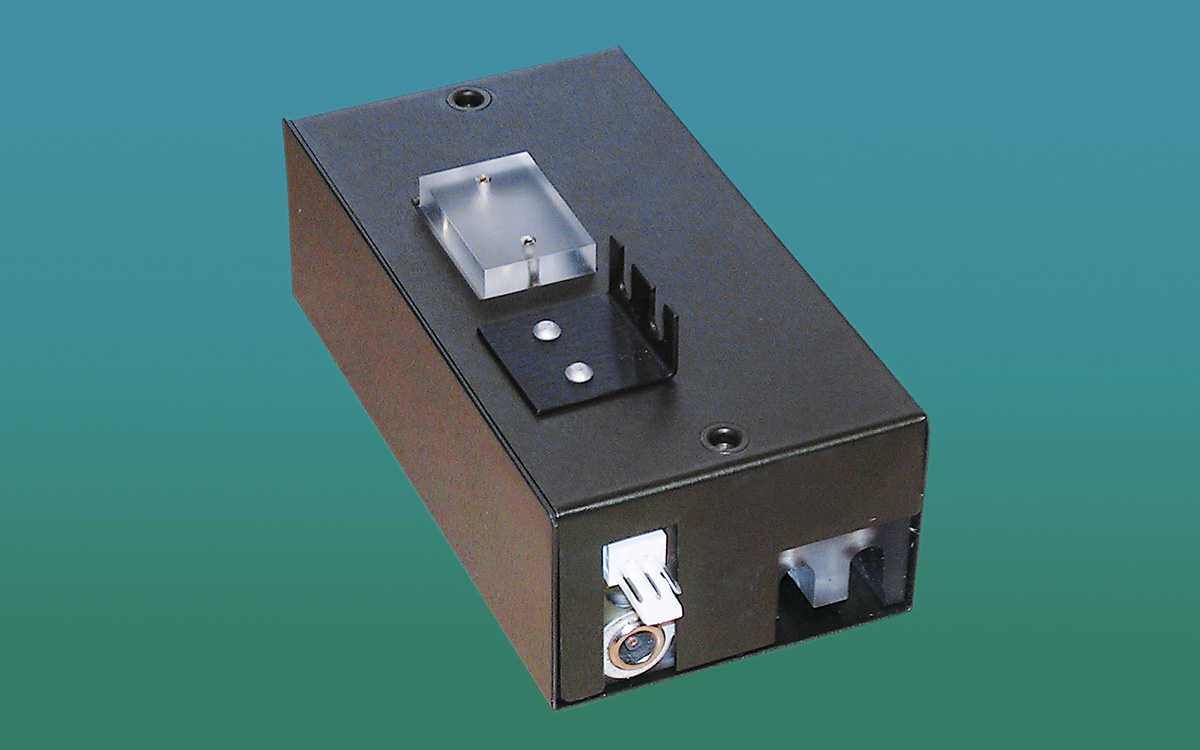

PCD-P Series Cavity Dumper Driver

Download
datasheet

For cavity dumping in mode-locked lasers
For cavity Q-switching in nanosecond lasers
Fast HV (less than 7 ns) edge ensures excellent pre- and post-pulse contrast

OEM Pockels Cell Driver

For Q-switching of lasers without use of phase retardation plate
Different versions tailored for specific applications

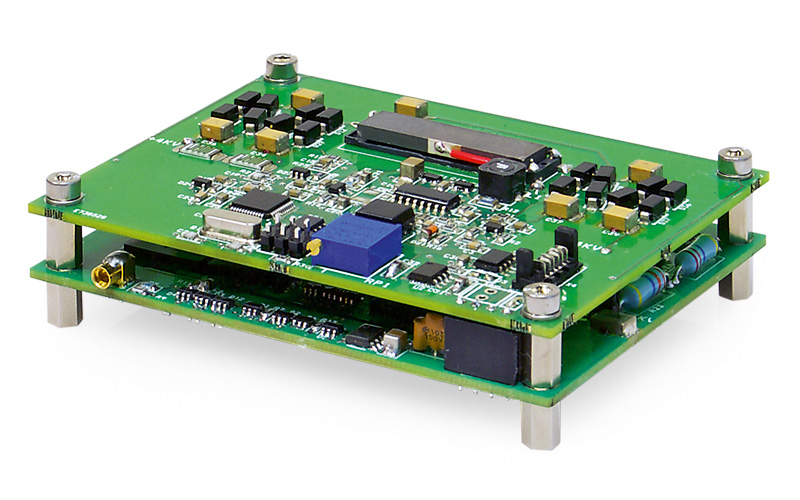

External view of PCD-N-3x driver

Download
datasheet

For Q-switching of lasers without use of phase retardation plate
Different versions tailored for specific applications
