| Main specifications 1) |
| Central wavelength |
1064 nm;
tunable ±0.2 nm |

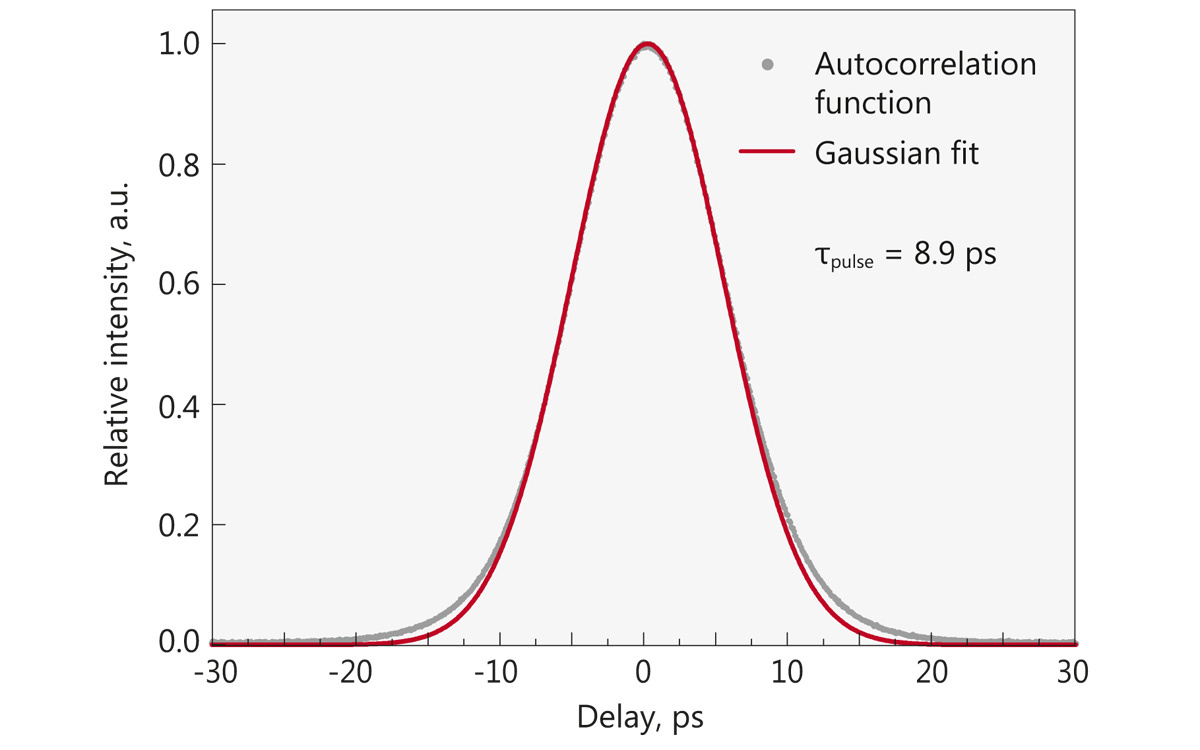

| Pulse duration |
2.3 ± 0.3 ps |
7 ± 1 ps |
9 ± 1 ps |

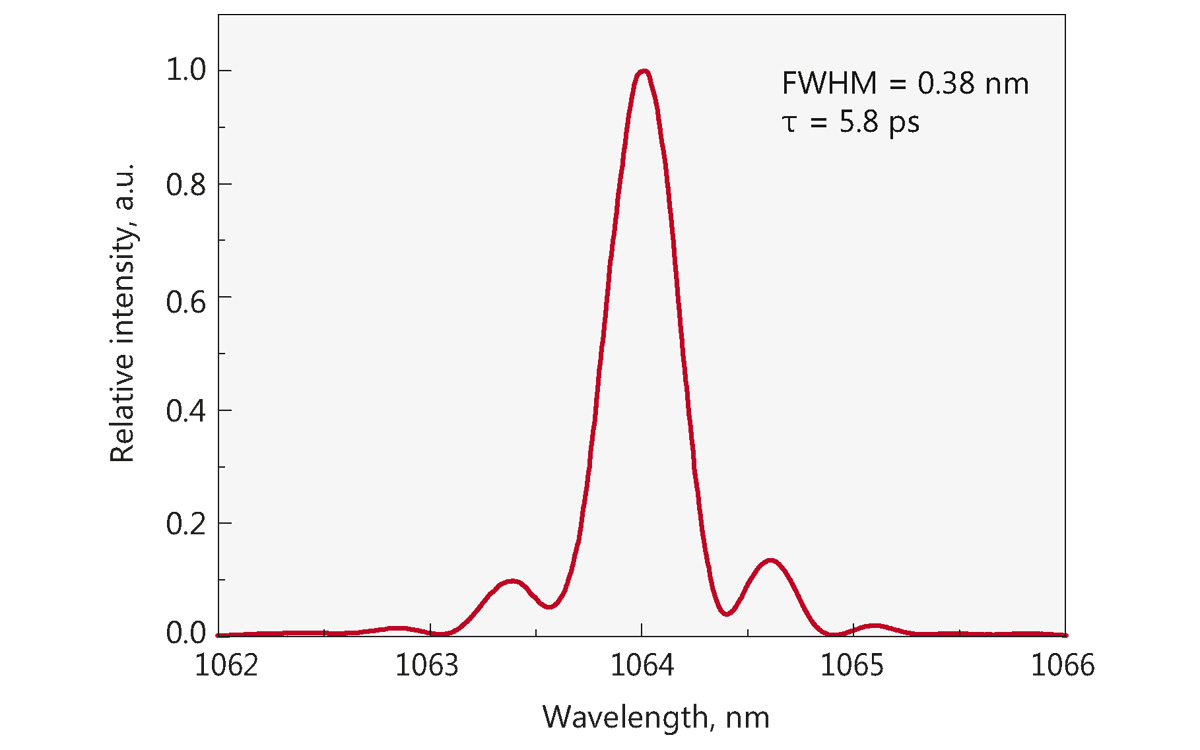

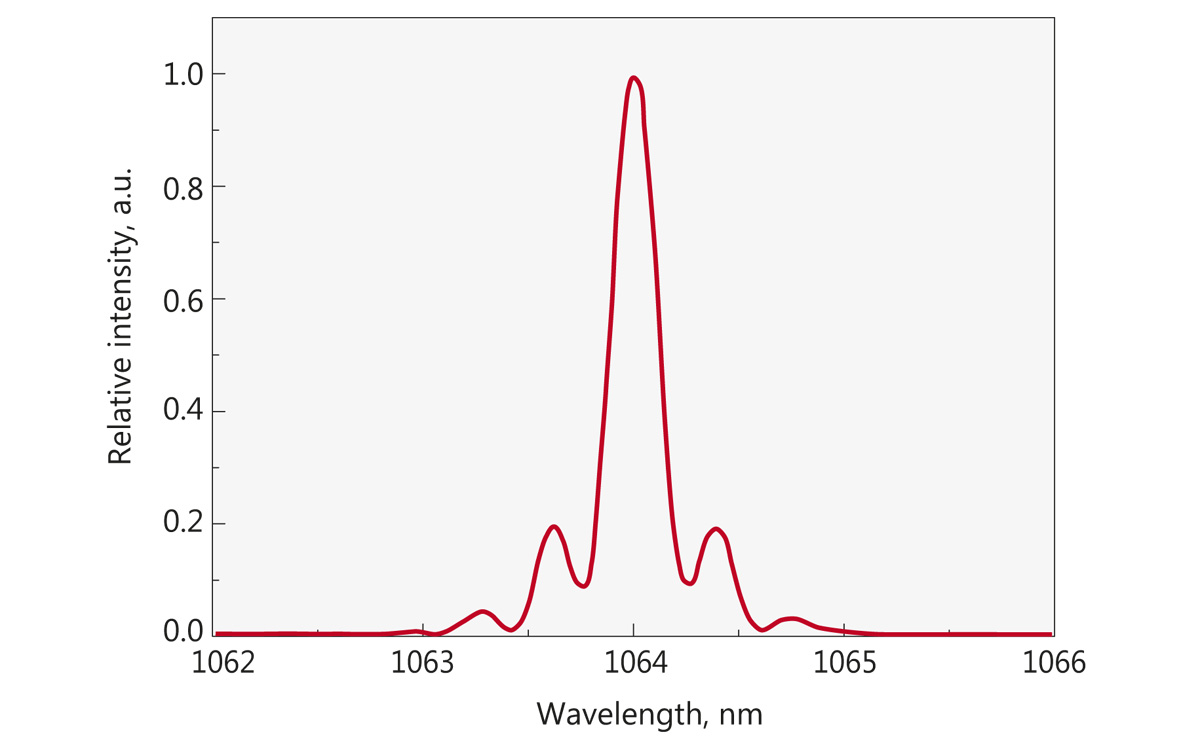

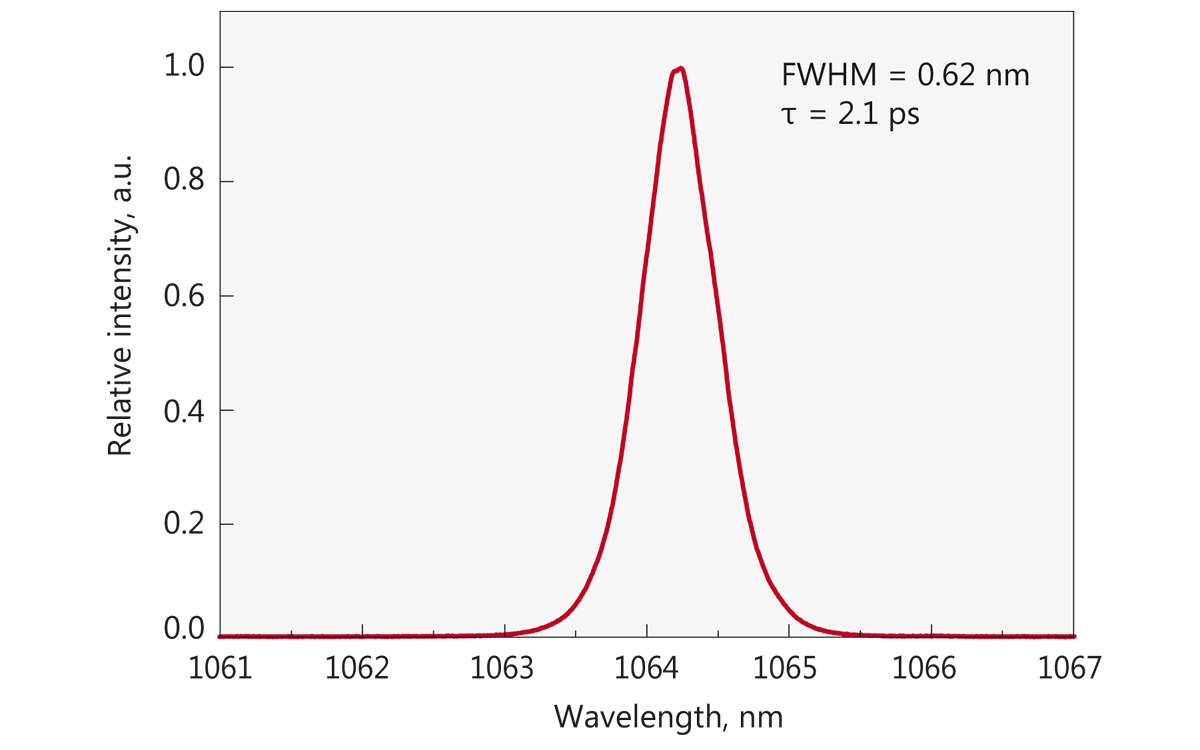

| Spectral bandwidth |
0.7 ± 0.2 nm |
0.4 ± 0.1 nm |
0.25 ± 0.05 nm |
| Oscillator pulse repetition rate |
40 ± 2 MHz |

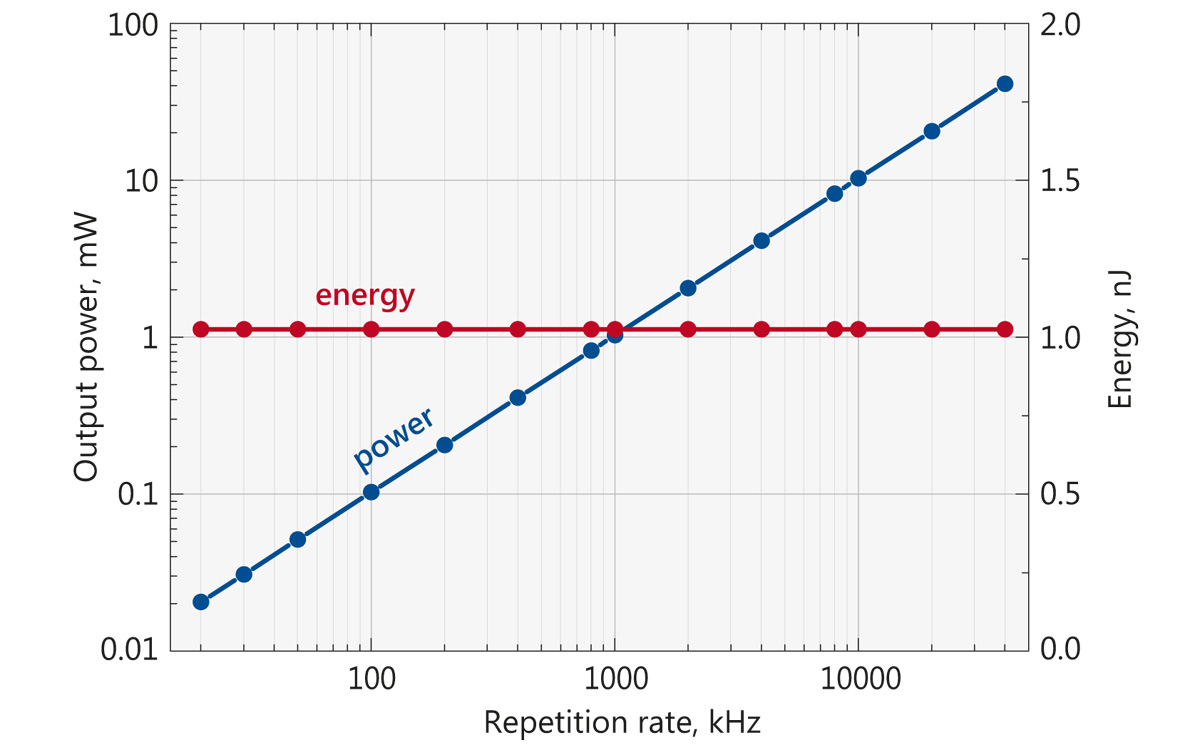

| Pulse repetition rate with pulse picker2) |
20 kHz – 40 MHz (PRR = PRROSC/N, N=1,4,5,...,2000) |

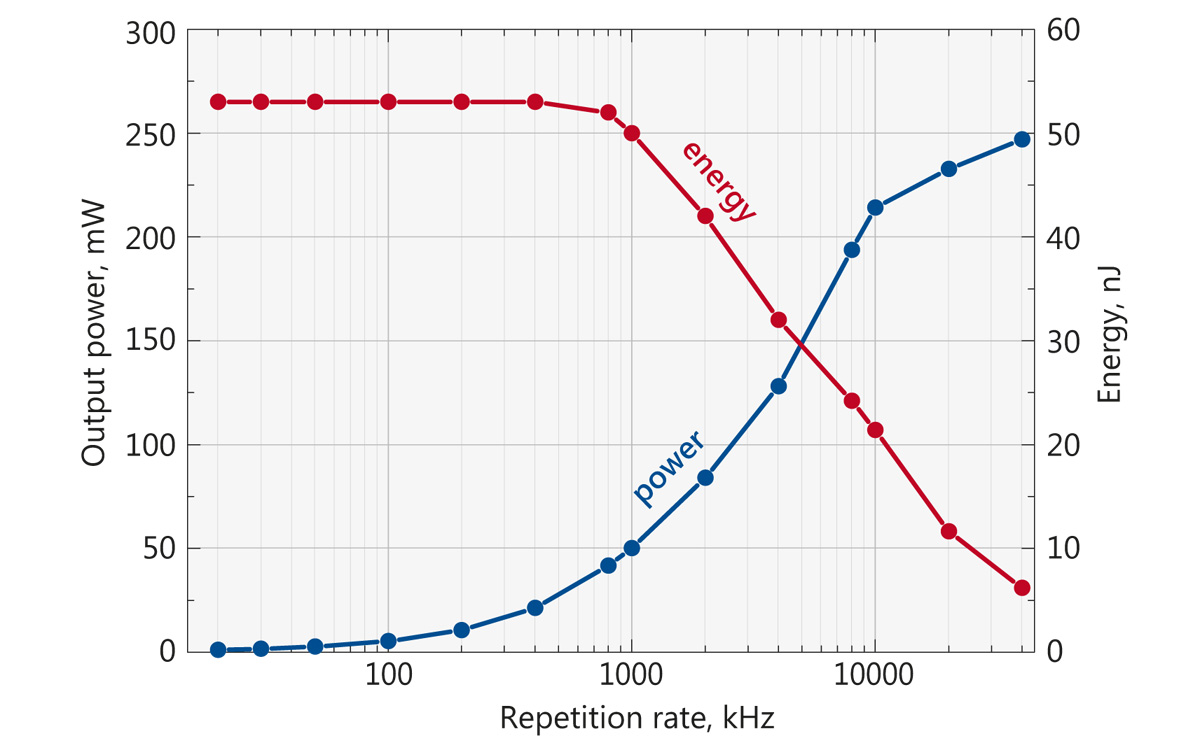

| Output power (without/with pulse picker) |
> 2 mW / > 1 mW |
> 80 mW / > 40 mW |
> 200 mW at 10 MHz
> 40 mW at 1 MHz
> 5 mW at 100 kHz
|
| Pulse energy (without/with pulse picker) |
> 50 pJ / > 25 pJ |
> 2 nJ / > 1 nJ |
> 50 nJ at repetition rates < 200 kHz |
| Polarization |
linear, > 100:1 extinction |
| Optical output |
FC/APC connector or collimator with mounting flange (optional) |
collimator and isolator node 3) |
| Umbilical |
3 m length armored cable Ø5mm |
3 m length armored cable Ø5mm |
| Collimated beam diameter |
0.9 ± 1 mm or
1.3 ± 0.1 mm or
2.1 ± 0.2 mm |
0.85 ± 1 mm |
| Beam height |
NA |
38 mm |
| Beam quality |
M2 < 1.1 |
| Pulse train monitoring |
photodiode output for oscillator train, TTL synch pulse for laser output (when pulse picker included) |

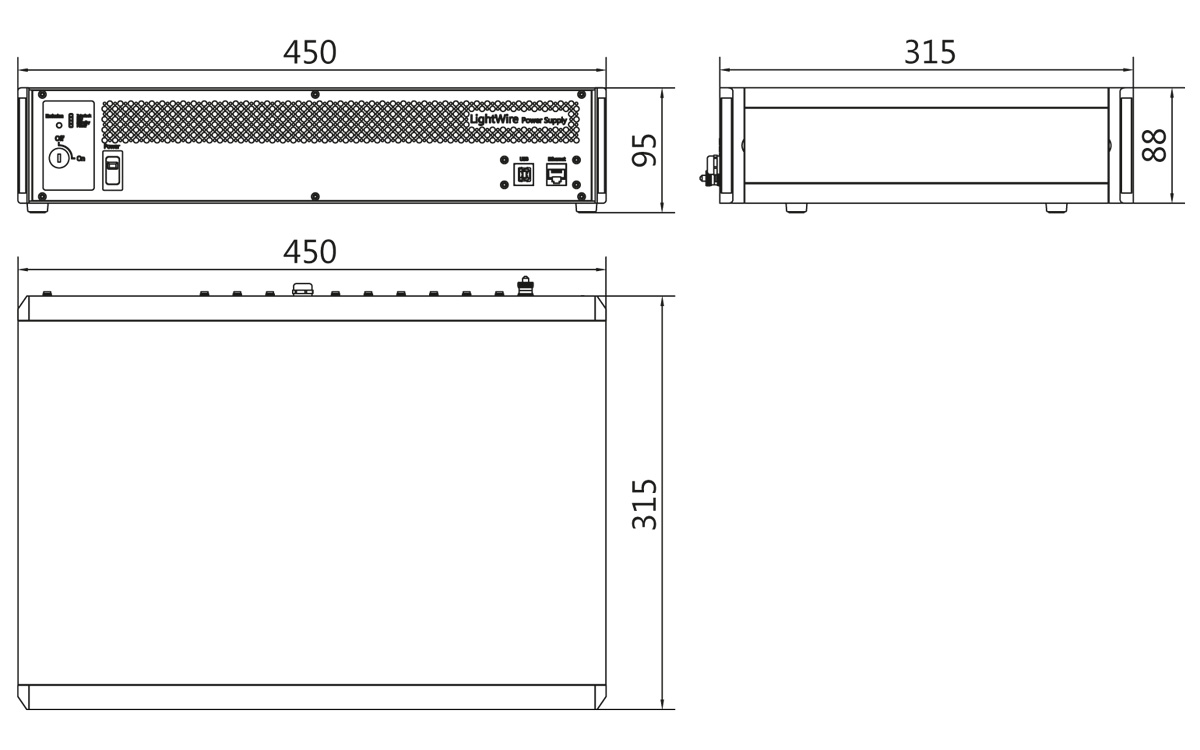

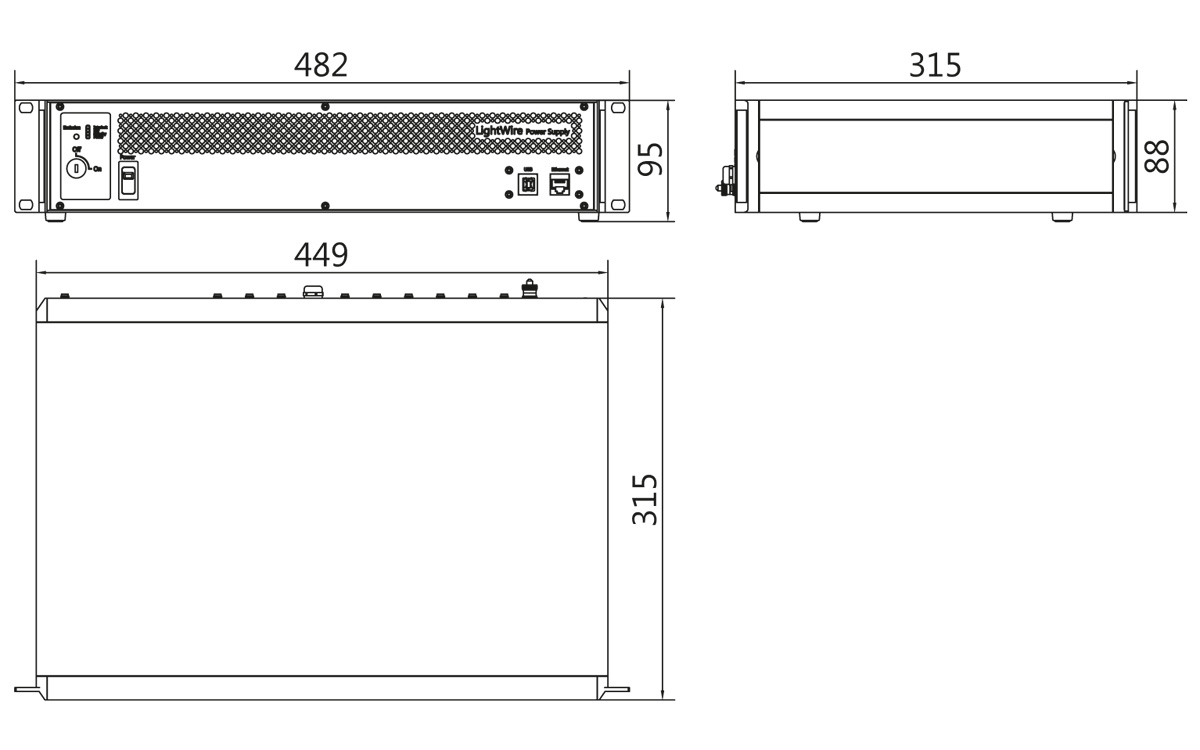

| Dimensions of control unit (L×W×H) |
315 × 450 × 95 (stand alone) or
315 × 482 × 95 (19" rack mountable) |

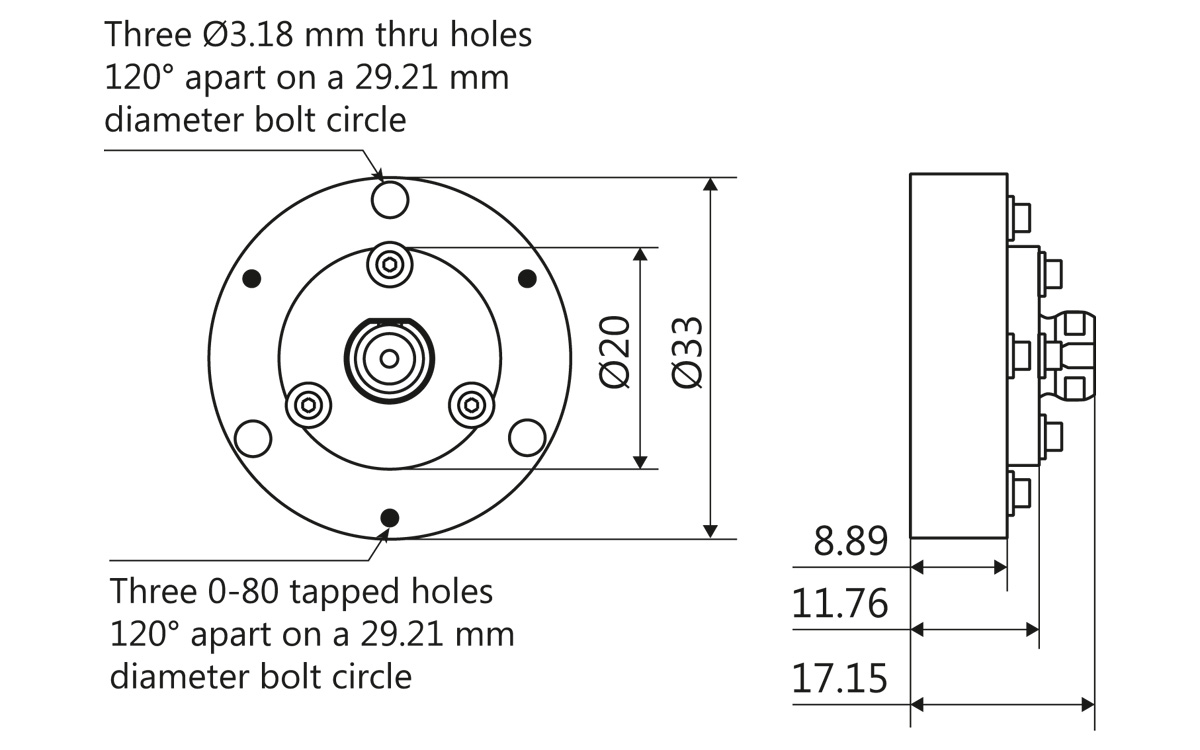

| Dimensions of collimator (D×L) |
Ø33 × 11.76 mm |
| Weight |
< 10 kg |
| Control interface |
USB, CAN, RS232, LAN (WLAN option) |
| Power supply (AC/DC adapter included) |
100 – 240 V, 50 – 60 Hz AC |
| Power consumption |
maximal 230 W (typical 60 W) |
| Operating conditions |
10 – 30 °C, humidity – not condensing |
