Features
- Lowest profile 2-axis nanopositioner available
- Large aperture
- 50 μm x 50 μm, 100 μm x 100 μm, 200 μm x 200 μm, or 300 μm x 300 μm ranges of motion
- Closed loop control
- High stability
|
Typical Applications
- Optical microscopy, easy to retrofit
- Fluorescence imaging
- Closed-loop AFM scanner
- Nanolithography
- Optical tweezers
- Super resolution microscopy
|
Product Description |
The Nano-Bio Series are ultra low profile, two axis nanopositioning systems. The low profile design allows the Nano-Bio Series to be easily integrated into existing inverted microscopes, AFMs and other instrumentation where space is limited. The large center aperture allows the Nano-Bio to accommodate the lenses of all major microscope manufacturers. The Nano-Bio Series includes internal position sensors with proprietary PicoQ® technology to provide absolute, repeatable position measurement and picometer accuracy under closed loop feedback control. The Nano-Bio100, Nano-Bio200, and Nano-Bio300 are constructed from aluminum and are ideal for optical microscopy. The invar Nano-Bio2M has increased thermal stability, reduced overall size, and is an easily implemented closed-loop scanner upgrade for instruments using Veeco NanoScope controllers (needs a Nano-Drive® controller with the AR-10 option). See the Nano-LP Series for a low profile, 3-axis nanopositioning system.
Compatible Software Packages:
     |

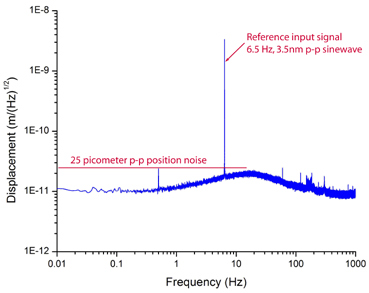

Nano-Bio200 Position Noise Spectrum |
Technical Specifications |
| Range of motion (Nano-Bio2M) |
50 μm x 50 μm |
| Range of motion (Nano-Bio100) |
100 μm x 100 μm |
| Range of motion (Nano-Bio200) |
200 μm x 200 μm |
| Range of motion (Nano-Bio300) |
300 μm x 300 μm |
| Resolution (50/100/200/300 μm) |
0.1/0.2/0.4/0.6 nm |
| Resonant Frequencies (Nano-Bio100, Nano-Bio200, and Nano-Bio300) |
|
| X axis (100/200/300 μm) |
450/400/260 Hz ±20% |
| Y axis (100/200/300 μm) |
350/300/200 Hz ±20% |
| Resonant Frequencies (Nano-Bio2M) |
|
| X axis |
500 Hz ±20% |
| Y axis |
400 Hz ±20% |
| Stiffness |
1.0 N/μm |
| θ roll, θ pitch (typical) |
≤1 μrad |
| θ yaw (typical) |
≤3 μrad |
| Recommended max. load (horizontal)* |
0.5 kg |
| Recommended max. load (vertical)* |
0.2 kg |
| Body Material |
Al (all models), Invar or Titanium (100 or 200μm only) |
| Controller |
Nano-Drive® |
| * Larger load requirements should be discussed with our engineering staff. |
|
|
